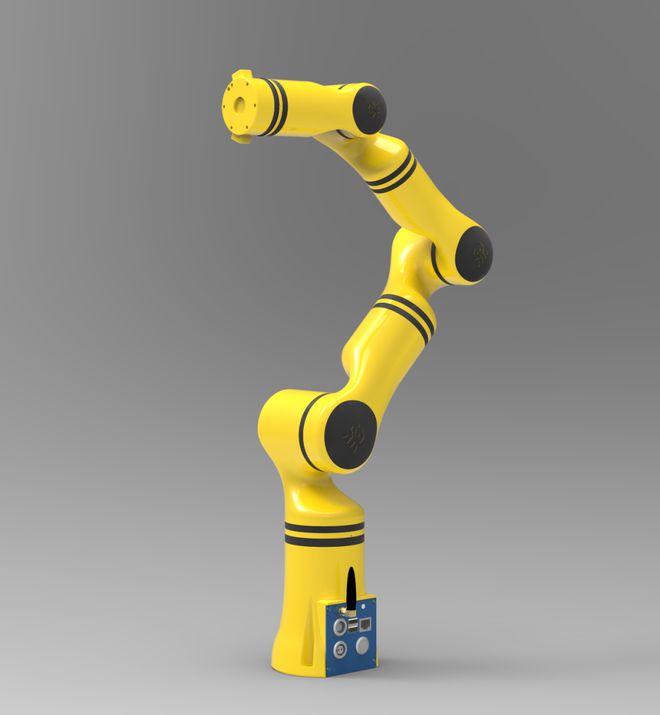

Lightweight robotic arm

Quote Inquiry

l IKE IT

Degree of freedom	6
Payload	5kg
Body weight	7.2kg
Repeatability	±0.05mm
Working radius	610mm
Power supply voltage	DC24V
Power consumption	Maximum power consumption 200W, comprehensive power consumption 100W
Protection level	IP54(robotic arm body)
Material	Aluminum alloy
Controller	Integrated
Communication mode	WIFI/network port/Bluetooth/USB serial port/RS485
Control mode	Drag and drop teaching/Teaching pendant/API/JSON
Joint motion range	J1 ±178°、J2 ±130°、J3 ±135°、J4 ±178°、J5 ±128°、J6 ±360°
Joint maximum speed	J1-J2 180°/s、J3-J6 225°/s
